Intelligent Rig Operations

About the Client

The client is a global leader in oilfield services, delivering advanced technologies and integrated solutions to support upstream energy operations. Operating in over 70 countries, the company specializes in drilling, evaluation, completion, and production services that optimize reservoir performance and enhance efficiency. Its offerings include cementing, stimulation, well intervention, and digital platforms for real-time insights.

Need for Change

To keep pace with the demands of modern drilling operations, it became essential to move beyond traditional, manual monitoring and delayed decision-making. The transition toward edge-based, real-time data analytics was driven by the need to empower rig crews with immediate, actionable insights. This shift would enable optimization of drilling parameters, proactive response to operational risks, and streamline workflows. The organization wanted to leverage advanced data analysis and visualization directly at the rig site to foster a culture of data-driven decision-making, reduce reliance on centralized cloud resources, and accelerate the transformation of raw data into operational value.

Challenges

The client faces several operational challenges in managing rig sites and drilling activities. These challenges stemmed from limitations in connectivity, real-time monitoring, equipment reliability, and the need for timely, data-driven decision-making, all of which impacted safety, efficiency, and overall performance. A range of stakeholders including field operators, drilling engineers and operations managers were impacted by these challenges.

• Overcoming Remote Monitoring Limitations at Rig Sites : Restricted internet connectivity and bandwidth at rig sites hindered timely access to operational data.
• Mitigating Real-Time Monitoring Risks in Drilling Operations : The client struggled to detect and respond quickly to critical drilling incidents, such as well kicks, interference, or collisions due to limited real-time monitoring at rig sites. This created safety risks and operational hazards for on-site teams.
• Addressing Equipment Reliability and Human Error : Equipment failures and human errors sometimes led to operational delays and increased costs, ultimately reducing overall project efficiency and profitability.
• Sub-Optimal Operational Efficiency due to Manual Monitoring : Non-optimized drilling processes and reliance on manual monitoring led to increased non-productive time (NPT) and delayed decision-making.
• Slow Responses due to Reliance on Manual Expertise in Drilling Operations : Depending on individual expertise to interpret real-time rig data slowed response times and made consistent decision-making challenging.

LTM’s Solution

To address the operational challenges faced at rig sites, an edge-based, real-time drilling data analysis solution was implemented to optimize oil and gas drilling operations. This approach leveraged advanced engineering models, visualization, and monitoring tools to transform raw drilling data into actionable insights, driving efficiency and informed decision-making.

• Real-Time Data Analysis : Applied business logic to real-time drilling data streams, transforming raw data into actionable operational insights for immediate decision-making.
• Operational Insights : Utilized detailed analytics to clarify drilling efficiency improvements and cost reductions through real-time well monitoring
• Data-Driven Analytical Models : Leveraged advanced dashboards like torque-drag, anti-collision monitoring, bit wear prediction, and kick/loss detection to identify drilling irregularities and trigger timely warnings.
• Visualization Tools : Employed interactive charts and graphs to enhance the visualization of drilling data, supporting better operational understanding and faster decision-making.
• Microservices-based Architecture : Adopting a microservices-based architecture and ensuring compatibility with various communication protocols enabled support for diverse rig environments and operational needs.
• Multiple Test Iterations : Conducting multiple test iterations with varied datasets significantly enhanced the reliability and effectiveness of the software solution.
• Torque and Drag (T&D) : This module enabled real-time friction factor calibration, generated broomstick plots, and applied Bayesian optimization for subsurface friction factors. It supported advanced analysis of hook load, torque and drag trends. It enabled continuous monitoring and adjustment of wellbore conditions for safer and more cost-effective operations.
• Anti-Collision Monitoring : This module provided real-time 3D visualization and analysis to prevent wellbore collisions during directional drilling. It integrated survey data and planned trajectories, enabling early detection of potential collision risks with offset wells for safer drilling operations.
• Bit Wear Prediction : Real-time monitoring and forecasting of bit wear, integrating mechanical specific energy, gamma ray, and formation data to optimize bit life and reduce unnecessary trips. It helped operators make informed decisions about bit replacement and avoid unnecessary trips. By analyzing drilling parameters and formation data, it reduced costs and improved drilling efficiency.
• Kick/Loss Prediction : Analyzed real-time drilling and tripping data to detect early signs of well control risks such as kicks and fluid losses. It provided automated risk indices and alerts, enabling proactive intervention to enhance safety and prevent costly incidents.
• Alert System : It enabled users to configure automated notifications for critical drilling parameters, operational risks, and custom conditions across all modules. It supported real-time alerts creation and customization, helping teams respond quickly to potential issues and maintain safe, efficient operations.
• Unit Conversion : Flexible unit system across all modules for global usability.

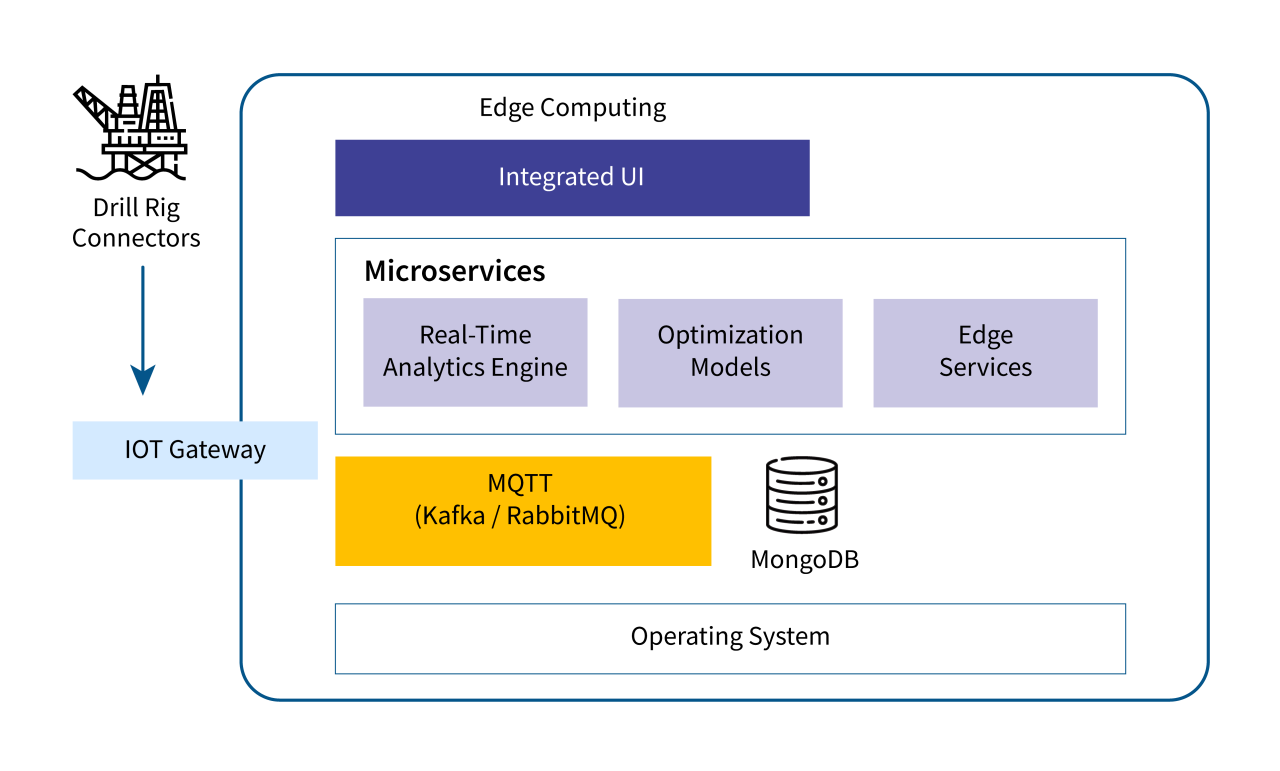

Architecture Diagram

Benefits

The implementation of an edge-based, rig-installable application for drilling optimization and hazard prevention has delivered measurable benefits for the client. These benefits include operational efficiency, safety improvements, cost savings, and accelerated data-driven decision-making for well construction projects.

• Optimized Drilling Parameters : Our solution enabled rig crews to optimize drilling parameters such as rate of penetration (ROP), bit replacement, and tripping speeds, improving both operational efficiency and safety.
• Faster Turnaround Times : Leveraged predictive algorithms to accelerate decision-making and reduce turnaround times, helping operators minimize non-productive time (NPT).
• Proactive Approach to Issue Management :  Provided smart alerts and 3D visualizations to predict and prevent issues like kicks, stuck pipes, and loss circulation.
• Lowered Operational Costs : Our solution reduced costs associated with data transmission and cloud storage and this led to lower operational costs.
• Swifter Data Analysis in Minutes : Reduced data analysis time from multiple days to just a few minutes, supporting faster and more informed decisions.
• Ultra-low Latency : Less than 10 milliseconds, which is critical for drilling safety and non-productive time (NPT) reduction. Compared to cloud-based solutions that take 100–300 milliseconds.
• Significant Bandwidth Savings : 60–80% reduction in bandwidth usage. Essential because raw sensor data transmission requires high bandwidth.
• Reduced Downtime : Predictive maintenance at the edge can save up to $25 million per day on offshore rigs by preventing failures.
• Improved Efficiency : 25% improvement in drilling efficiency by using edge-based solutions.

Conclusion

The deployment of LTIMindtree’s edge-based, real-time drilling data analytics solution has empowered the customer to overcome operational challenges at rig sites, driving significant improvements in efficiency, safety, and cost savings. By transforming raw drilling data into actionable insights and enabling rapid, data-driven decision-making, the solution, powered by predictive analytics for drilling, has set a new benchmark for drilling optimization and hazard prevention.
